Q48F-16（T型三通）

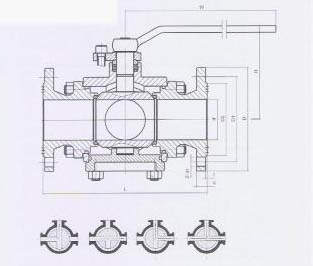

主要外形尺寸和连接尺寸 单位：厘米
Main overall & connercting dimensions Unit:mm
| DN |
d |
L |
D |
D1 |
D2 |
b |
f |
Z-d1 |
H |
W |
| 25 |
25 |
180 |
115 |
85 |
65 |
14 |
2 |
4-14 |
100 |
130 |
| 32 |
32 |
218 |
135 |
100 |
78 |
16 |
2 |
4-18 |
108 |
180 |
| 40 |
38 |
240 |
145 |
110 |
85 |
16 |
3 |
4-18 |
133 |
230 |
| 50 |
50 |
260 |
160 |
125 |
100 |
16 |
3 |
4-18 |
147 |
230 |
| 65 |
64 |
280 |
180 |
145 |
120 |
18 |
3 |
4-18 |
170 |
400 |
| 80 |
76 |
310 |
195 |
160 |
135 |
20 |
3 |
8-18 |
177 |
400 |
| 100 |
100 |
395 |
215 |
180 |
155 |
20 |
3 |
8-18 |
255 |
650 |
| 125 |
125 |
432 |
245 |
210 |
185 |
22 |
3 |
8-18 |
325 |
650 |
| 150 |
150 |
490 |
280 |
240 |
210 |
24 |
3 |
8-23 |
266 |
- |
F法兰标准：JB/T 79.1 Flange standard:JB/T 79.1
亦可按客户要求制造 Flange also can be designed and manufactured according toCustomer
Q48F-25（T型三通）
主要尺寸和连接尺寸 单位：毫米
Main overall & connecting dimensions Unit:mm
| DN |
d |
L |
D |
D1 |
D2 |
b |
f |
Z-d1 |
H |
W |
| 25 |
25 |
180 |
115 |
85 |
65 |
16 |
2 |
4-14 |
100 |
130 |
| 32 |
32 |
218 |
135 |
100 |
78 |
18 |
2 |
4-18 |
108 |
180 |
| 40 |
38 |
240 |
145 |
110 |
85 |
18 |
3 |
4-18 |
133 |
230 |
| 50 |
50 |
260 |
160 |
125 |
100 |
20 |
3 |
4-18 |
147 |
230 |
| 65 |
64 |
280 |
180 |
145 |
120 |
22 |
3 |
8-18 |
170 |
400 |
| 80 |
76 |
310 |
195 |
160 |
135 |
22 |
3 |
8-18 |
177 |
400 |
| 100 |
100 |
395 |
230 |
190 |
160 |
24 |
3 |
8-23 |
255 |
650 |
| 125 |
125 |
432 |
270 |
220 |
188 |
28 |
3 |
8-25 |
325 |
650 |
| 150 |
150 |
490 |
300 |
250 |
218 |
30 |
3 |
8-25 |
266 |
- |
F法兰标准：JB/T 79.1 Flange standard:JB/T 79.1
亦可按客户要求制造 Flange also can be designed and manufactured according toCustomer |
