| 名称：KH型外螺纹球阀 |  | | 编号： | | 型号：Q21F-40 | | 类别： | | 品牌： | |  |  | |
Q21F-40,40P,40R

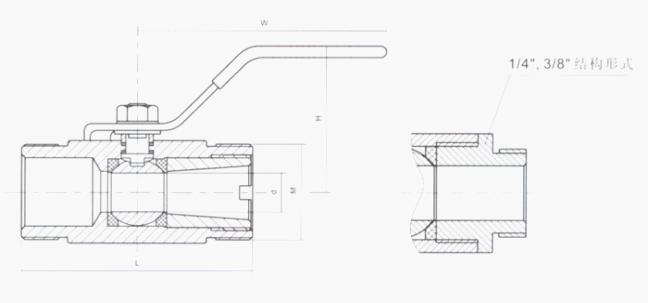

主要外形尺寸和连接尺寸 单位：毫米
Main overall & connecting dimensions Unit：mm
|
DN |
M |
d |
L |
H |
W |
|
1/4" |
M22X1.5 |
8 |
85 |
57 |
105 |
|
3/8" |
M24X1.5 |
10 |
85 |
58.6 |
110 |
|
1/2" |
M30X2 |
10 |
86 |
59 |
110 |
|
3/4" |
M36X2 |
12.6 |
90 |
60 |
110 |
|
1" |
M42X2 |
17 |
98 |
64 |
110 |
|
1¹/4" |
M48X2 |
22 |
120 |
74.5 |
145 |
|
1¹/2" |
M54X2 |
26 |
135 |
83 |
150 |
|
2" |
M64X2 |
32.8 |
140 |
90 |
180 |
| | |  |
|
| |
|
|
